Our House Plans

Ashcroft Homes concise range of house plans make it easy for you to choose a design and floorplan for your new home, investment property or multi-unit development.

Our designs have been created to specifically meet the demands of the Auckland market for smarter, more affordable homes for smaller sections. Our latest range of houses have been designed to offer maximum living on the smallest of footprints, and many can even be joined to form duplex or terraced housing.

You can join different designs from our Duplex/Terraced House range to offer a multitude of solutions. Smarter designs that really optimise your land, and maximise your return on investment. Our specialised team can help you discover the true potential of your land. Get in touch today.

View our house plans

Duplex/Terraced House Potential Plans

Duplex/Terraced House Potential Plans

Just released – our newest range of house designs. Each of these homes can be joined with another to form duplex, and in some cases, even terraced housing. Mix and match designs,to make the very best use of your land.

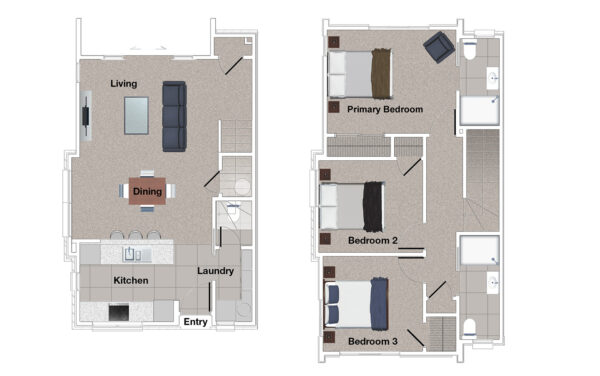

TheWindsor Plan – Three Bedroom
Enquire for Price
  • bed 3
  • tub 2.5
  • sofa 1
  • 97 m2
* Land & site works not included.

Read More >

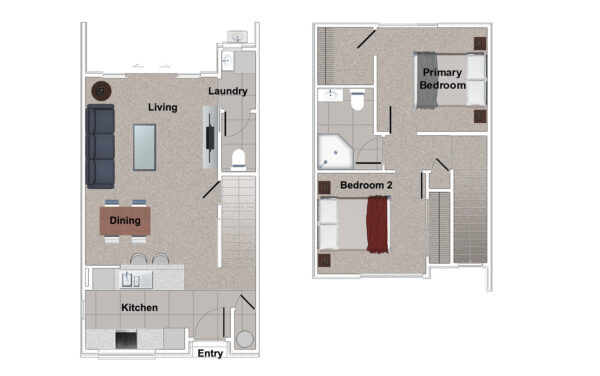

TheNewcastle Plan
Enquire for Price
  • bed 2
  • tub 1.5
  • sofa 1
  • 77 m2
* Land & site works not included.

This clever two level, two bedroom home has a lovely open plan kitchen, dining and lounge area. The Newcastle is perfect for site maximisation with the ability to join into either duplex or terraced house structures.

Read More >

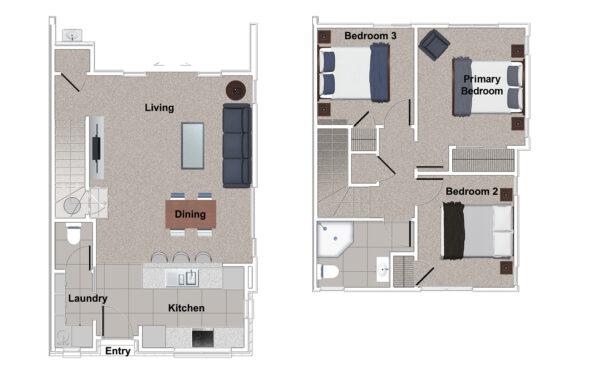

TheNewcastle Plan – Three Bedrooms
Enquire for Price
  • bed 3
  • tub 1.5
  • sofa 1
  • 94 m2
* Land & site works not included.

This clever two level, three bedroom home offers maximum living via an efficient and compact design.  Enjoy an open plan kitchen, dining and lounge area which flows naturally through to the outdoors.  The home features a bathroom upstairs and a further guest toilet on the ground floor. The Newcastle is perfect for site maximisation with the ability to join into either duplex or terraced house structures. This popular compact home […]

Read More >

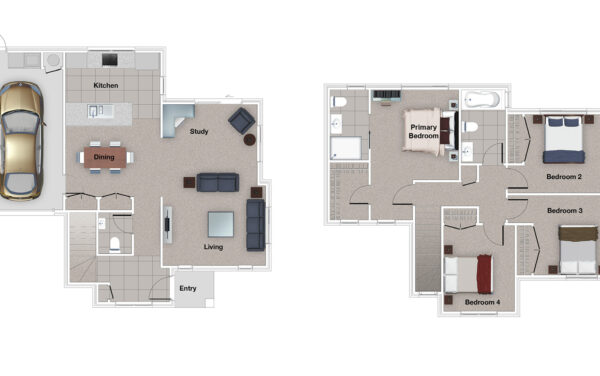

3D front house model3D front house modelTheCastleton Plan
From $345,000*
  • bed 4
  • tub 2.5
  • sofa 1
  • 158 m2
* Land & site works not included.

The Castleton, another well appointed four bedroom home from Ashcroft. On the lower level, you'll enjoy open plan living which flows to the outdoor garden, guest toilet, an internally accessed garage and laundry.

Read More >

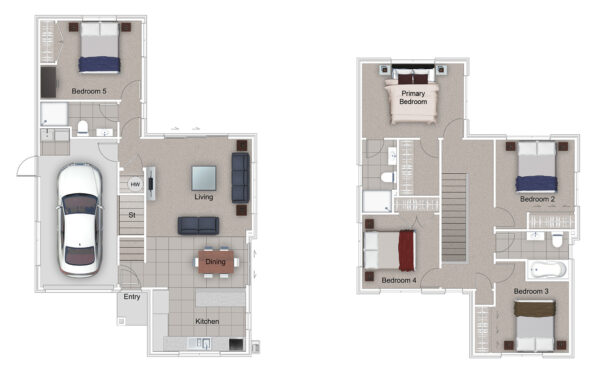

belford_front 3Dbelford_front 3DTheBelford Plan
From $369,000*
  • bed 5
  • tub 3
  • sofa 1
  • 168 m2
* Land & site works not included.

Another clever design from Ashcroft Homes that maximises living spaces while maintaining a minimal footprint. This five bedroom, three bathroom home is set over two levels with great indoor outdoor flow to the garden area.

Read More >

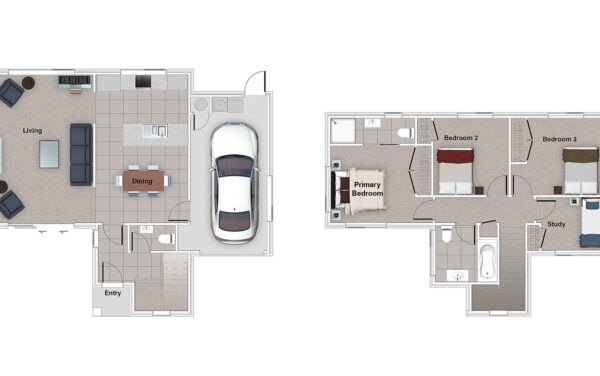

Churchill Terraced House 3D modelChurchill Terraced House 3D modelTheChurchill Plan
From $325,000*
  • bed 4
  • tub 2.5
  • sofa 1
  • 143 m2
* Land & site works not included.

This four bedroom home offers modern stylish living over two levels. Open living spaces on the ground level flow naturally to exterior living spaces. The home has two bathrooms upstairs and a guest toilet on the ground level.

Read More >

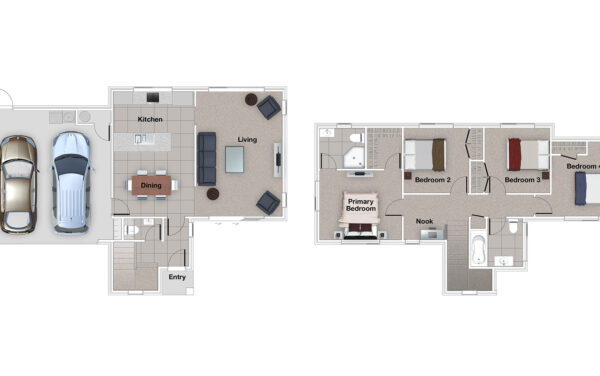

Kensworth Terraced HouseKensworth Terraced HouseTheKensworth Plan
From $379,000*
  • bed 4
  • tub 2.5
  • sofa 1
  • 177 m2
* Land & site works not included.

This well designed 4 bedroom, two storey home offers lots of comforts for modern living. Master bedroom with ensuite and walk in robe. Open plan kitchen, dining and living area with great indoor/outdoor flow to exterior living spaces.

Read More >

duplexduplexTheCamdens in Duplex
From $329,000*
  • bed 4
  • tub 2.5
  • sofa 1
  • 146 m2
* Land & site works not included.

Our Camden design, shown in a duplex form. Any of Ashcroft's terraced house range plans can be combined to create a duplex housing development. These house plans can be joined in variations to enable the very best use of your site.

Read More >

Arlington 3D modelArlington 3D modelTheArlington Plan
Enquire for Price
  • bed 4
  • tub 3
  • sofa 1
  • 171 m2
* Land & site works not included.

This 4-bedroom, three storey terraced home offers comfort for modern living. Master bedroom with ensuite, open plan kitchen, dining and living area with great indoor/outdoor flow to deck.

Read More >

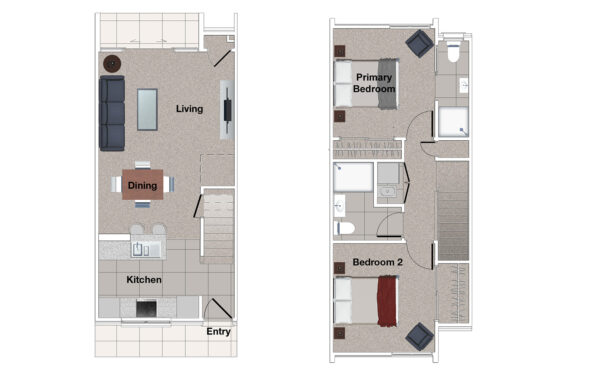

Windsor 3D modelWindsor 3D modelTheWindsor Plan
Enquire for Price
  • bed 2
  • tub 2
  • sofa 1
  • 74 m2
* Land & site works not included.

This clever two level, two bedroom home has a lovely open plan kitchen, dining and lounge area. The Windsor is perfect for site maximisation with the ability to join into either duplex or terraced house structures.

Read More >

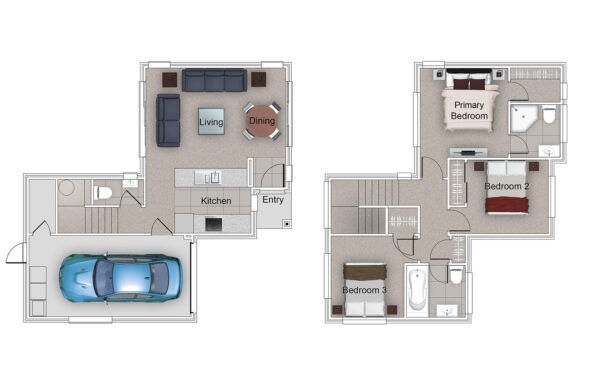

3D house plan3D house planTheLuton Plan
From $285,000*
  • bed 3
  • tub 2
  • sofa 1
  • 115 m2
* Land & site works not included.

The Luton - Three bedrooms including Master with ensuite and walk in wardrobe. Single Garage with laundry and internal access. Open plan kitchen, dining and living area with superb indoor/outdoor flow.

Read More >

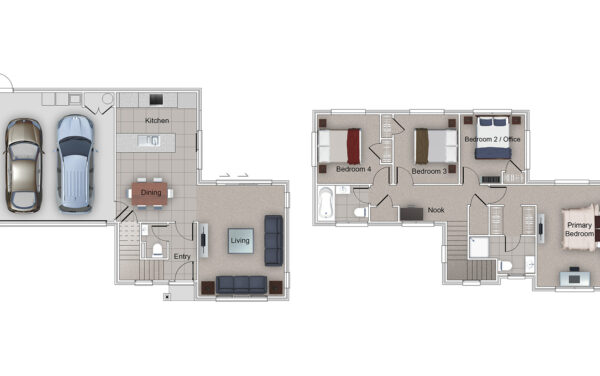

kingston 3D house modelkingston 3D house modelTheKingston Plan
From $379,000*
  • bed 4
  • tub 2.5
  • sofa 1
  • 181 m2
* Land & site works not included.

This 2 story 4 Bedroom home comprises a Master Bedroom with Ensuite and Walk in robe. The ground floor includes a double garage with laundry, guest toilet and a family bathroom.

Read More >

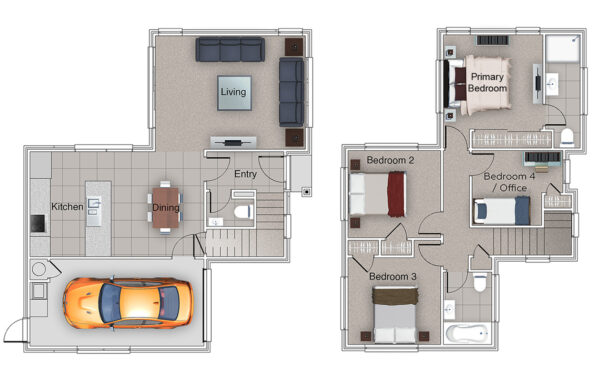

camden 3D modelcamden 3D modelTheCamden Plan
From $329,000*
  • bed 4
  • tub 2.5
  • sofa 1
  • 146 m2
* Land & site works not included.

This clever compact 2 story home comprises 4 bedrooms (or 3 bedrooms plus office). Ensuite bathroom off the Master Bedroom, additional family bathroom upstairs, and a guest toilet. Single garage with laundry.

Read More >

Two Level Plans

Two Level Plans

TheWindsor Plan – Three Bedroom
Enquire for Price
  • bed 3
  • tub 2.5
  • sofa 1
  • 97 m2
* Land & site works not included.

Read More >

TheNewcastle Plan
Enquire for Price
  • bed 2
  • tub 1.5
  • sofa 1
  • 77 m2
* Land & site works not included.

This clever two level, two bedroom home has a lovely open plan kitchen, dining and lounge area. The Newcastle is perfect for site maximisation with the ability to join into either duplex or terraced house structures.

Read More >

3D front house model3D front house modelTheCastleton Plan
From $345,000*
  • bed 4
  • tub 2.5
  • sofa 1
  • 158 m2
* Land & site works not included.

The Castleton, another well appointed four bedroom home from Ashcroft. On the lower level, you'll enjoy open plan living which flows to the outdoor garden, guest toilet, an internally accessed garage and laundry.

Read More >

belford_front 3Dbelford_front 3DTheBelford Plan
From $369,000*
  • bed 5
  • tub 3
  • sofa 1
  • 168 m2
* Land & site works not included.

Another clever design from Ashcroft Homes that maximises living spaces while maintaining a minimal footprint. This five bedroom, three bathroom home is set over two levels with great indoor outdoor flow to the garden area.

Read More >

Churchill Terraced House 3D modelChurchill Terraced House 3D modelTheChurchill Plan
From $325,000*
  • bed 4
  • tub 2.5
  • sofa 1
  • 143 m2
* Land & site works not included.

This four bedroom home offers modern stylish living over two levels. Open living spaces on the ground level flow naturally to exterior living spaces. The home has two bathrooms upstairs and a guest toilet on the ground level.

Read More >

Kensworth Terraced HouseKensworth Terraced HouseTheKensworth Plan
From $379,000*
  • bed 4
  • tub 2.5
  • sofa 1
  • 177 m2
* Land & site works not included.

This well designed 4 bedroom, two storey home offers lots of comforts for modern living. Master bedroom with ensuite and walk in robe. Open plan kitchen, dining and living area with great indoor/outdoor flow to exterior living spaces.

Read More >

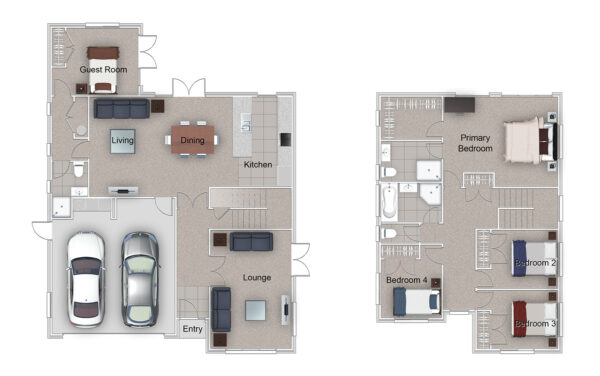

Langstone Plus CGILangstone Plus CGITheLangstone Plus Plan
From $469,000*
  • bed 5
  • tub 3.5
  • sofa 2
  • 254 m2
* Land & site works not included.

4 bedroom home with additional guest room on ground floor. Master bedroom with office space, ensuite and walk in robe. Main bathroom with separate shower and bath.

Read More >

Ascott CGIAscott CGITheAscott Plan
From $419,000*
  • bed 4
  • tub 3
  • sofa 1
  • 221 m2
* Land & site works not included.

The home is especially designed for narrow sites - featuring 4 bedrooms and an upper floor with computer nook. Ideally suited to the new Auckland Unitary Plan.

Read More >

TheBeaumont Plan
From $332,000*
  • bed 4
  • tub 2.5
  • sofa 1
  • 162 m2
* Land & site works not included.

Compact 4 bedroom home. Ideal for first home buyers and investors, and ideally suited to the new Auckland Unitary Plan.

Read More >

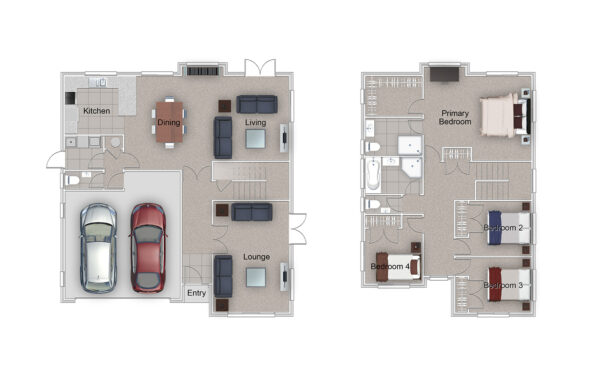

Langstone 3D modelLangstone 3D modelTheLangstone Plan
From $437,000*
  • bed 4
  • tub 2.5
  • sofa 2
  • 238 m2
* Land & site works not included.

The perfect solution for growing families!! Alternative layout option for 5th bedroom downstairs - large garage with space for a work bench.

Read More >

3D house plan3D house planTheLuton Plan
From $285,000*
  • bed 3
  • tub 2
  • sofa 1
  • 115 m2
* Land & site works not included.

The Luton - Three bedrooms including Master with ensuite and walk in wardrobe. Single Garage with laundry and internal access. Open plan kitchen, dining and living area with superb indoor/outdoor flow.

Read More >

kingston 3D house modelkingston 3D house modelTheKingston Plan
From $379,000*
  • bed 4
  • tub 2.5
  • sofa 1
  • 181 m2
* Land & site works not included.

This 2 story 4 Bedroom home comprises a Master Bedroom with Ensuite and Walk in robe. The ground floor includes a double garage with laundry, guest toilet and a family bathroom.

Read More >

camden 3D modelcamden 3D modelTheCamden Plan
From $329,000*
  • bed 4
  • tub 2.5
  • sofa 1
  • 146 m2
* Land & site works not included.

This clever compact 2 story home comprises 4 bedrooms (or 3 bedrooms plus office). Ensuite bathroom off the Master Bedroom, additional family bathroom upstairs, and a guest toilet. Single garage with laundry.

Read More >

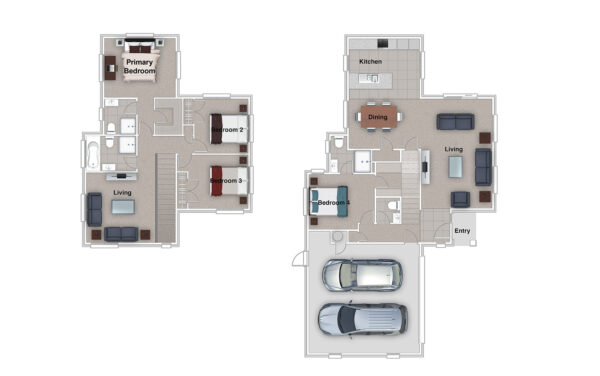

Oxford house modelOxford house modelTheOxford Plan
From $399,000*
  • bed 4
  • tub 3.5
  • sofa 2
  • 207 m2
* Land & site works not included.

4 Bedroom, 2 living area home, suitable for extended families. Lovely galley style kitchen with full height window for natural light.
Suited to infill housing on sites measuring from 350m2 and ideal to take advantage of the new Auckland Unitary Plan.

Read More >

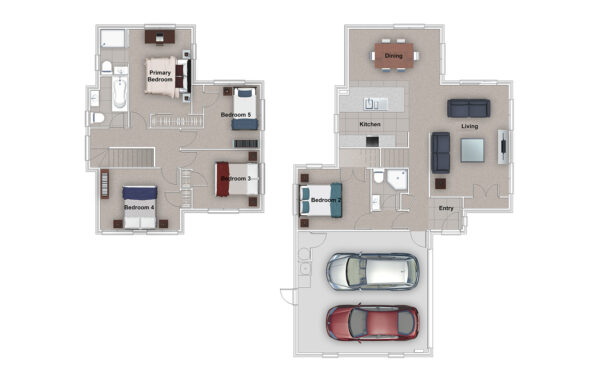

Rocheford CGIRocheford CGITheRocheford Plan
From $379,000*
  • bed 5
  • tub 3
  • sofa 1
  • 191 m2
* Land & site works not included.

5 Bedroom home, suitable for extended families. Lovely galley style kitchen with full height window for natural light.
Suited to infill housing on sites measuring from 350m2. Ideally suited to the new Auckland Unitary Plan.

Read More >

One Level Plans

One Level Plans

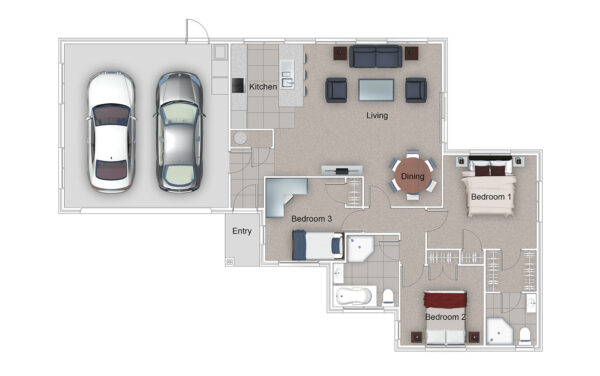

hertford-cgihertford-cgiTheHertford Plan
From $285,000*
  • bed 3
  • tub 2
  • sofa 1
  • 140 m2
* Land & site works not included.

3 bedroom single storey home. Master bedroom with ensuite and walk-in robe. Main bathroom with separate shower and bath. Double garage with internal access. Ideal for first home buyers and downsizers.

Read More >

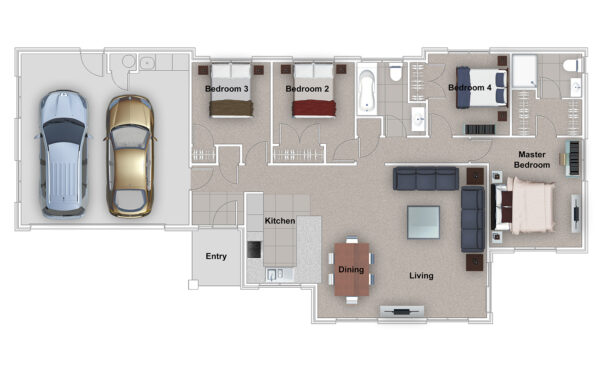

Bradford CGIBradford CGITheBradford Plan
From $309,000*
  • bed 4
  • tub 2
  • sofa 1
  • 160 m2
* Land & site works not included.

4 Bedroom, single storey home. Double garage with laundry and internal access - suited to sites measuring from 450m2. Ideally suited to the new Auckland Unitary Plan.

Read More >

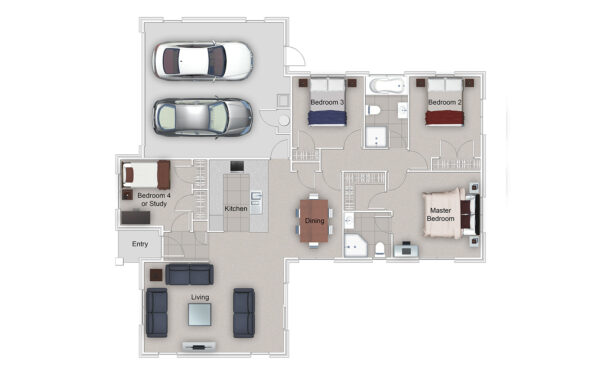

Augusta CGIAugusta CGITheAugusta Plan
From $309,000*
  • bed 4
  • tub 2
  • sofa 1
  • 160 m2
* Land & site works not included.

4 Bedroom, single storey home. Double garage with laundry and internal access - suited to sites measuring from 450m2. Ideally suited to the new Auckland Unitary Plan.

Read More >

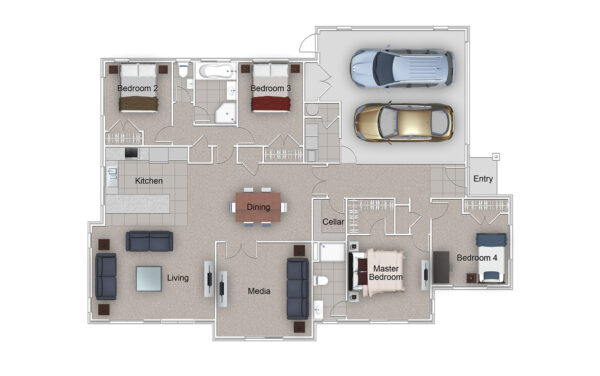

Radfield CGIRadfield CGITheRadfield Plan
From $396,000*
  • bed 4
  • tub 2
  • sofa 2
  • 235 m2
* Land & site works not included.

4 Bedroom, single storey home including Media Room/Formal lounge, and even a Wine Cellar!

Read More >

TheWindsor Plan – Three Bedroom
Enquire for Price
  • bed 3
  • tub 2.5
  • sofa 1
  • 97 m2
* Land & site works not included.

Read More >

TheNewcastle Plan
Enquire for Price
  • bed 2
  • tub 1.5
  • sofa 1
  • 77 m2
* Land & site works not included.

This clever two level, two bedroom home has a lovely open plan kitchen, dining and lounge area. The Newcastle is perfect for site maximisation with the ability to join into either duplex or terraced house structures.

Read More >

TheNewcastle Plan – Three Bedrooms
Enquire for Price
  • bed 3
  • tub 1.5
  • sofa 1
  • 94 m2
* Land & site works not included.

This clever two level, three bedroom home offers maximum living via an efficient and compact design.  Enjoy an open plan kitchen, dining and lounge area which flows naturally through to the outdoors.  The home features a bathroom upstairs and a further guest toilet on the ground floor. The Newcastle is perfect for site maximisation with the ability to join into either duplex or terraced house structures. This popular compact home […]

Read More >

3D front house model3D front house modelTheCastleton Plan
From $345,000*
  • bed 4
  • tub 2.5
  • sofa 1
  • 158 m2
* Land & site works not included.

The Castleton, another well appointed four bedroom home from Ashcroft. On the lower level, you'll enjoy open plan living which flows to the outdoor garden, guest toilet, an internally accessed garage and laundry.

Read More >

belford_front 3Dbelford_front 3DTheBelford Plan
From $369,000*
  • bed 5
  • tub 3
  • sofa 1
  • 168 m2
* Land & site works not included.

Another clever design from Ashcroft Homes that maximises living spaces while maintaining a minimal footprint. This five bedroom, three bathroom home is set over two levels with great indoor outdoor flow to the garden area.

Read More >

Churchill Terraced House 3D modelChurchill Terraced House 3D modelTheChurchill Plan
From $325,000*
  • bed 4
  • tub 2.5
  • sofa 1
  • 143 m2
* Land & site works not included.

This four bedroom home offers modern stylish living over two levels. Open living spaces on the ground level flow naturally to exterior living spaces. The home has two bathrooms upstairs and a guest toilet on the ground level.

Read More >

Kensworth Terraced HouseKensworth Terraced HouseTheKensworth Plan
From $379,000*
  • bed 4
  • tub 2.5
  • sofa 1
  • 177 m2
* Land & site works not included.

This well designed 4 bedroom, two storey home offers lots of comforts for modern living. Master bedroom with ensuite and walk in robe. Open plan kitchen, dining and living area with great indoor/outdoor flow to exterior living spaces.

Read More >

duplexduplexTheCamdens in Duplex
From $329,000*
  • bed 4
  • tub 2.5
  • sofa 1
  • 146 m2
* Land & site works not included.

Our Camden design, shown in a duplex form. Any of Ashcroft's terraced house range plans can be combined to create a duplex housing development. These house plans can be joined in variations to enable the very best use of your site.

Read More >

Arlington 3D modelArlington 3D modelTheArlington Plan
Enquire for Price
  • bed 4
  • tub 3
  • sofa 1
  • 171 m2
* Land & site works not included.

This 4-bedroom, three storey terraced home offers comfort for modern living. Master bedroom with ensuite, open plan kitchen, dining and living area with great indoor/outdoor flow to deck.

Read More >

Windsor 3D modelWindsor 3D modelTheWindsor Plan
Enquire for Price
  • bed 2
  • tub 2
  • sofa 1
  • 74 m2
* Land & site works not included.

This clever two level, two bedroom home has a lovely open plan kitchen, dining and lounge area. The Windsor is perfect for site maximisation with the ability to join into either duplex or terraced house structures.

Read More >

Langstone Plus CGILangstone Plus CGITheLangstone Plus Plan
From $469,000*
  • bed 5
  • tub 3.5
  • sofa 2
  • 254 m2
* Land & site works not included.

4 bedroom home with additional guest room on ground floor. Master bedroom with office space, ensuite and walk in robe. Main bathroom with separate shower and bath.

Read More >

Ascott CGIAscott CGITheAscott Plan
From $419,000*
  • bed 4
  • tub 3
  • sofa 1
  • 221 m2
* Land & site works not included.

The home is especially designed for narrow sites - featuring 4 bedrooms and an upper floor with computer nook. Ideally suited to the new Auckland Unitary Plan.

Read More >

TheBeaumont Plan
From $332,000*
  • bed 4
  • tub 2.5
  • sofa 1
  • 162 m2
* Land & site works not included.

Compact 4 bedroom home. Ideal for first home buyers and investors, and ideally suited to the new Auckland Unitary Plan.

Read More >

Langstone 3D modelLangstone 3D modelTheLangstone Plan
From $437,000*
  • bed 4
  • tub 2.5
  • sofa 2
  • 238 m2
* Land & site works not included.

The perfect solution for growing families!! Alternative layout option for 5th bedroom downstairs - large garage with space for a work bench.

Read More >

3D house plan3D house planTheLuton Plan
From $285,000*
  • bed 3
  • tub 2
  • sofa 1
  • 115 m2
* Land & site works not included.

The Luton - Three bedrooms including Master with ensuite and walk in wardrobe. Single Garage with laundry and internal access. Open plan kitchen, dining and living area with superb indoor/outdoor flow.

Read More >

kingston 3D house modelkingston 3D house modelTheKingston Plan
From $379,000*
  • bed 4
  • tub 2.5
  • sofa 1
  • 181 m2
* Land & site works not included.

This 2 story 4 Bedroom home comprises a Master Bedroom with Ensuite and Walk in robe. The ground floor includes a double garage with laundry, guest toilet and a family bathroom.

Read More >

camden 3D modelcamden 3D modelTheCamden Plan
From $329,000*
  • bed 4
  • tub 2.5
  • sofa 1
  • 146 m2
* Land & site works not included.

This clever compact 2 story home comprises 4 bedrooms (or 3 bedrooms plus office). Ensuite bathroom off the Master Bedroom, additional family bathroom upstairs, and a guest toilet. Single garage with laundry.

Read More >

hertford-cgihertford-cgiTheHertford Plan
From $285,000*
  • bed 3
  • tub 2
  • sofa 1
  • 140 m2
* Land & site works not included.

3 bedroom single storey home. Master bedroom with ensuite and walk-in robe. Main bathroom with separate shower and bath. Double garage with internal access. Ideal for first home buyers and downsizers.

Read More >

Bradford CGIBradford CGITheBradford Plan
From $309,000*
  • bed 4
  • tub 2
  • sofa 1
  • 160 m2
* Land & site works not included.

4 Bedroom, single storey home. Double garage with laundry and internal access - suited to sites measuring from 450m2. Ideally suited to the new Auckland Unitary Plan.

Read More >

Oxford house modelOxford house modelTheOxford Plan
From $399,000*
  • bed 4
  • tub 3.5
  • sofa 2
  • 207 m2
* Land & site works not included.

4 Bedroom, 2 living area home, suitable for extended families. Lovely galley style kitchen with full height window for natural light.
Suited to infill housing on sites measuring from 350m2 and ideal to take advantage of the new Auckland Unitary Plan.

Read More >

Augusta CGIAugusta CGITheAugusta Plan
From $309,000*
  • bed 4
  • tub 2
  • sofa 1
  • 160 m2
* Land & site works not included.

4 Bedroom, single storey home. Double garage with laundry and internal access - suited to sites measuring from 450m2. Ideally suited to the new Auckland Unitary Plan.

Read More >

Rocheford CGIRocheford CGITheRocheford Plan
From $379,000*
  • bed 5
  • tub 3
  • sofa 1
  • 191 m2
* Land & site works not included.

5 Bedroom home, suitable for extended families. Lovely galley style kitchen with full height window for natural light.
Suited to infill housing on sites measuring from 350m2. Ideally suited to the new Auckland Unitary Plan.

Read More >

Radfield CGIRadfield CGITheRadfield Plan
From $396,000*
  • bed 4
  • tub 2
  • sofa 2
  • 235 m2
* Land & site works not included.

4 Bedroom, single storey home including Media Room/Formal lounge, and even a Wine Cellar!

Read More >

WP Feedback

Dive straight into the feedback!
Login below and you can start commenting using your own user instantly
